Eigenvectors pictured
symmetry-eigenbasis-stretch.mp4
These are sparse samples decoded from the current MP4, not newly rendered illustrations. They can support checks of the sampled states and labels, but cannot establish continuous motion, timing, transitions, or the absence of problems between samples. Use the full MP4 when judging those properties.
1280 × 720 · 24 fps · 14.5 s · 348 frames · 12 samples
MP4 SHA-256 627d8caf6e17df54a5c6851f9ca579314a2d120308ea56741b74c40388b9f31e
Frame manifest · Context markdown · Download complete review packet
Chapter context
Section: Primer -- Eigenfunctions. Excerpts are verbatim; line numbers refer to the included chapter markdown.
Caption
Eigenvectors pictured
Image description

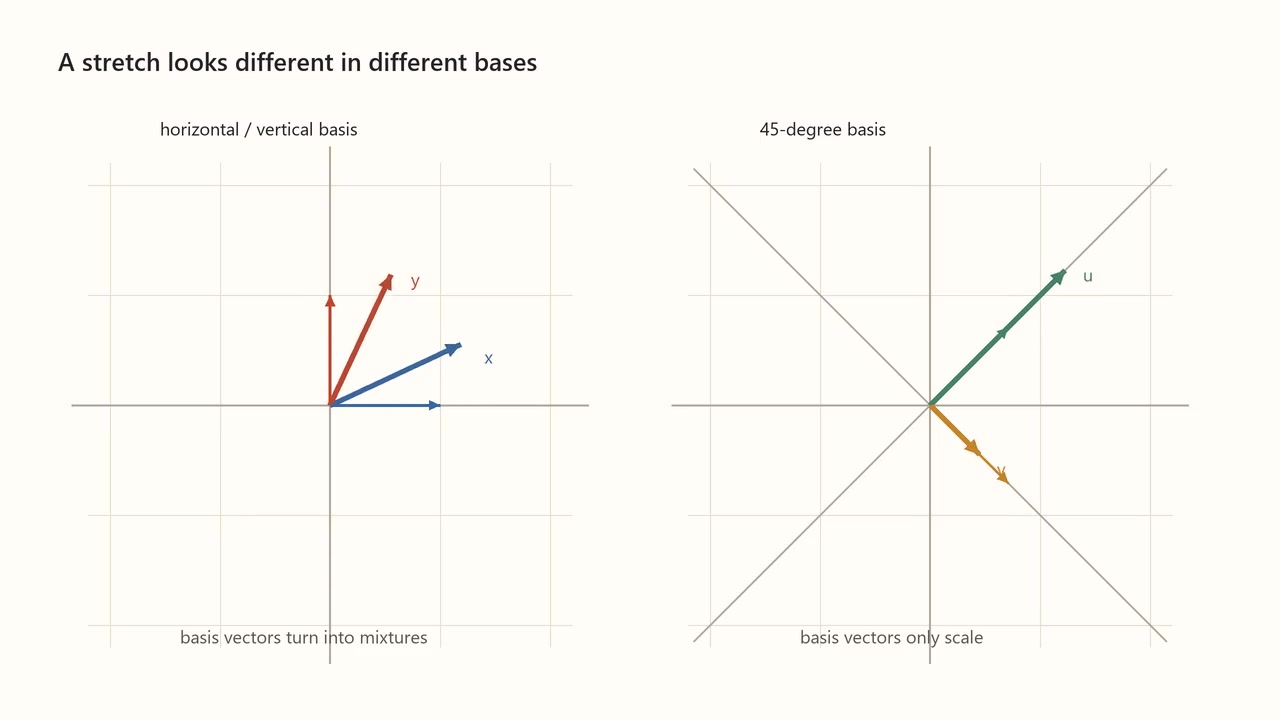

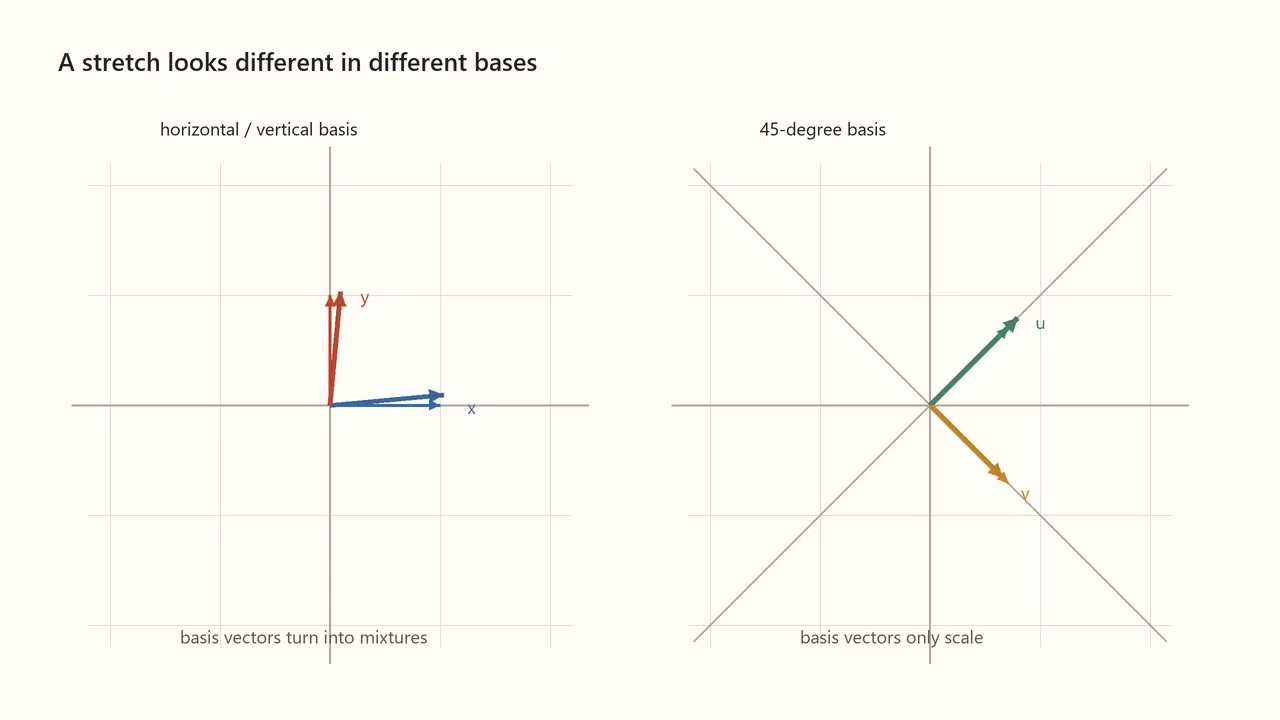

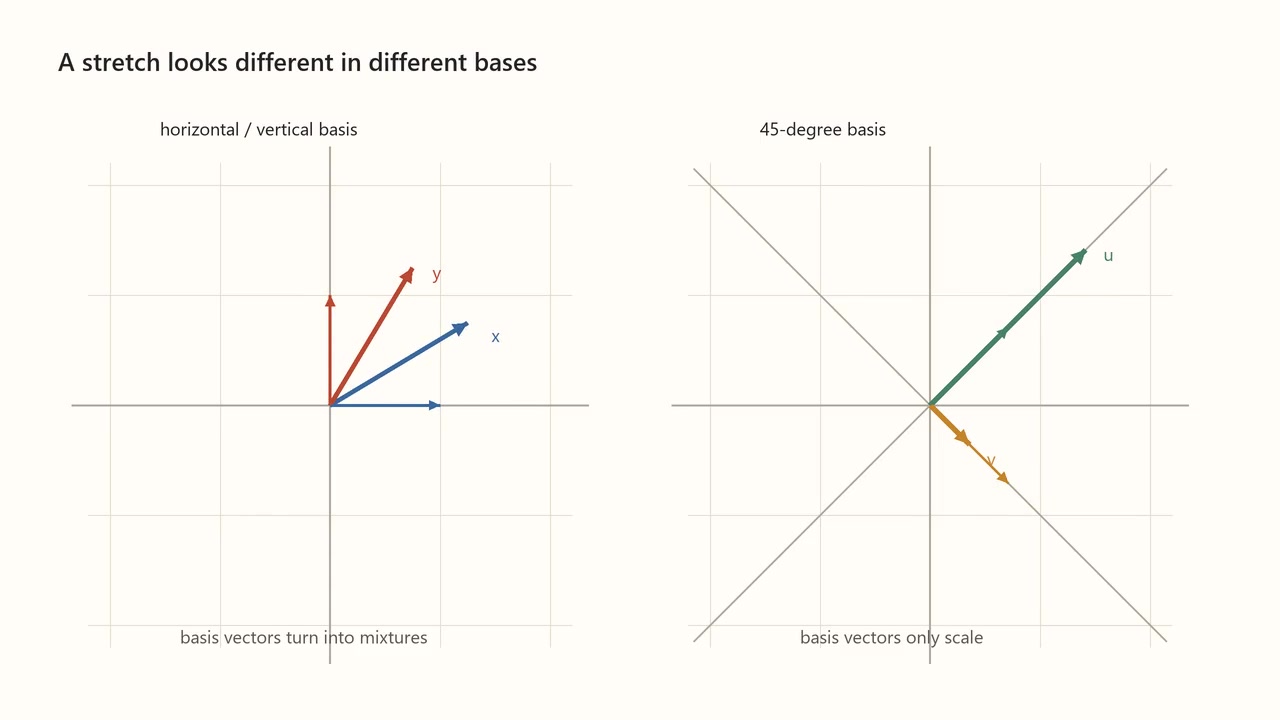

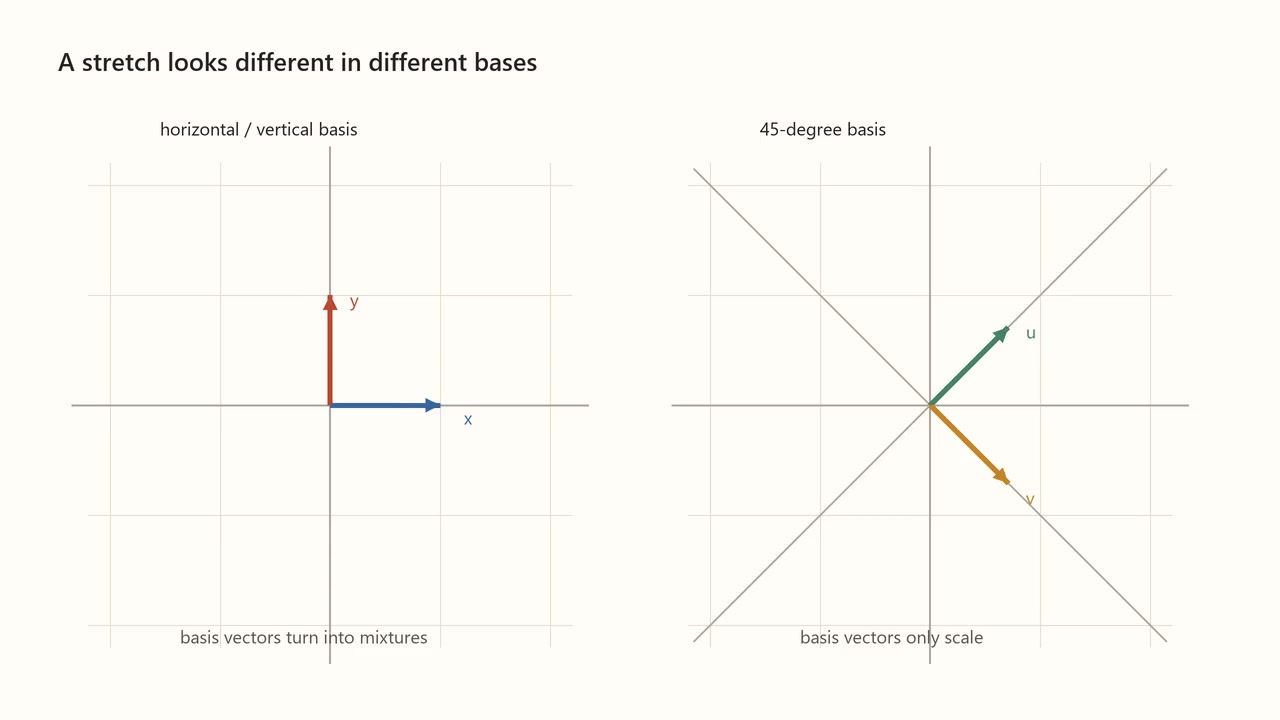

Stretching in ordinary and eigenvector bases
Before the animation
Chapter lines 614–616
| $(x,y)$ basis: components mix | $(u,v)$ basis: components do not mix |
|---|---|
| $\displaystyle \begin{aligned}\mathbf r&=\frac12\begin{pmatrix}s+s^{-1}&s-s^{-1}\\s-s^{-1}&s+s^{-1}\end{pmatrix}\mathbf r_{\mathrm{in}}\\&=\frac12\left[(s+s^{-1})x+(s-s^{-1})y\right]\hat{\mathbf x}\\&\quad+\frac12\left[(s-s^{-1})x+(s+s^{-1})y\right]\hat{\mathbf y}\end{aligned}$ | $\displaystyle \begin{aligned}\mathbf r&=\begin{pmatrix}s&0\\0&s^{-1}\end{pmatrix}\mathbf r_{\mathrm{in}}\\&=su\hat{\mathbf u}+s^{-1}v\hat{\mathbf v}\end{aligned}$ |
Chapter lines 618–618

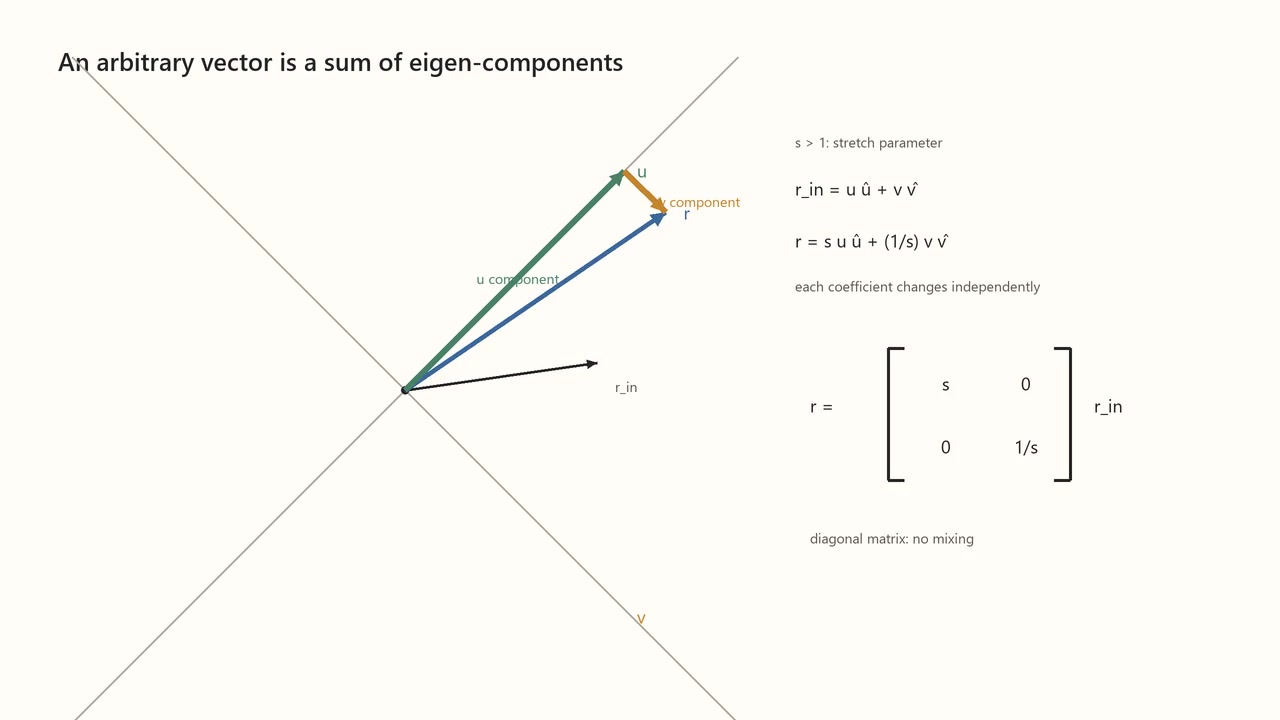

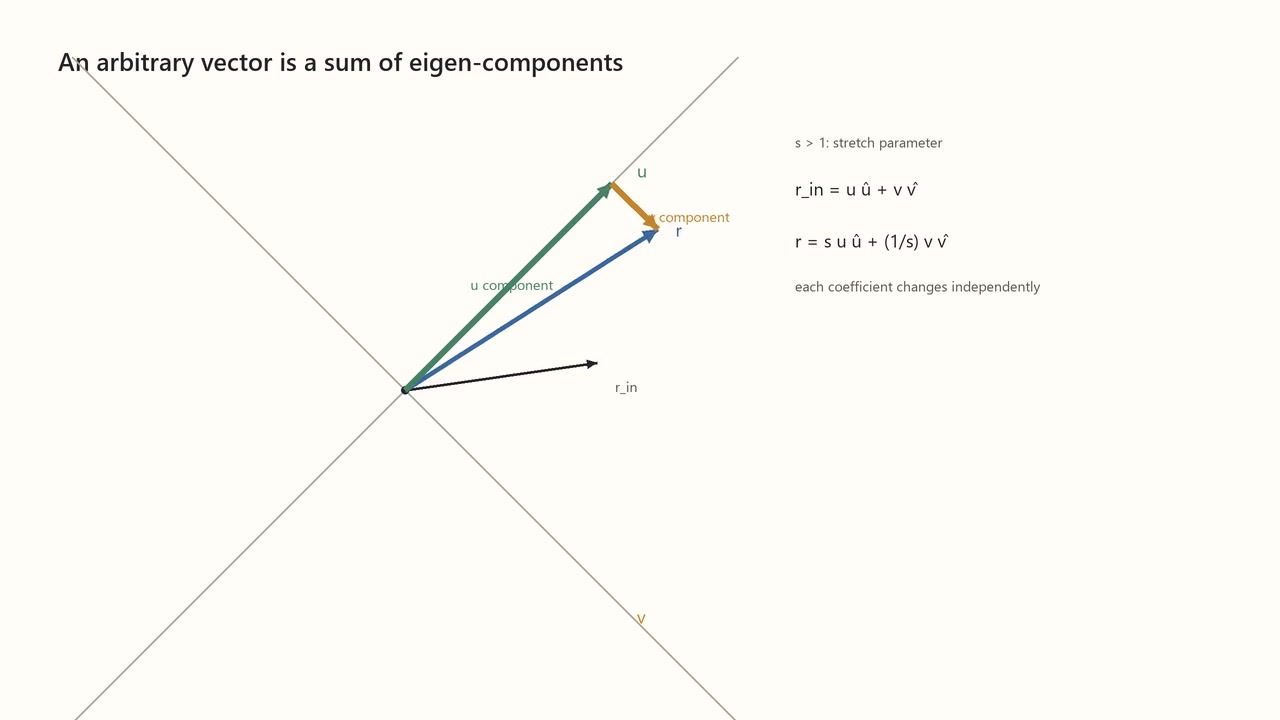

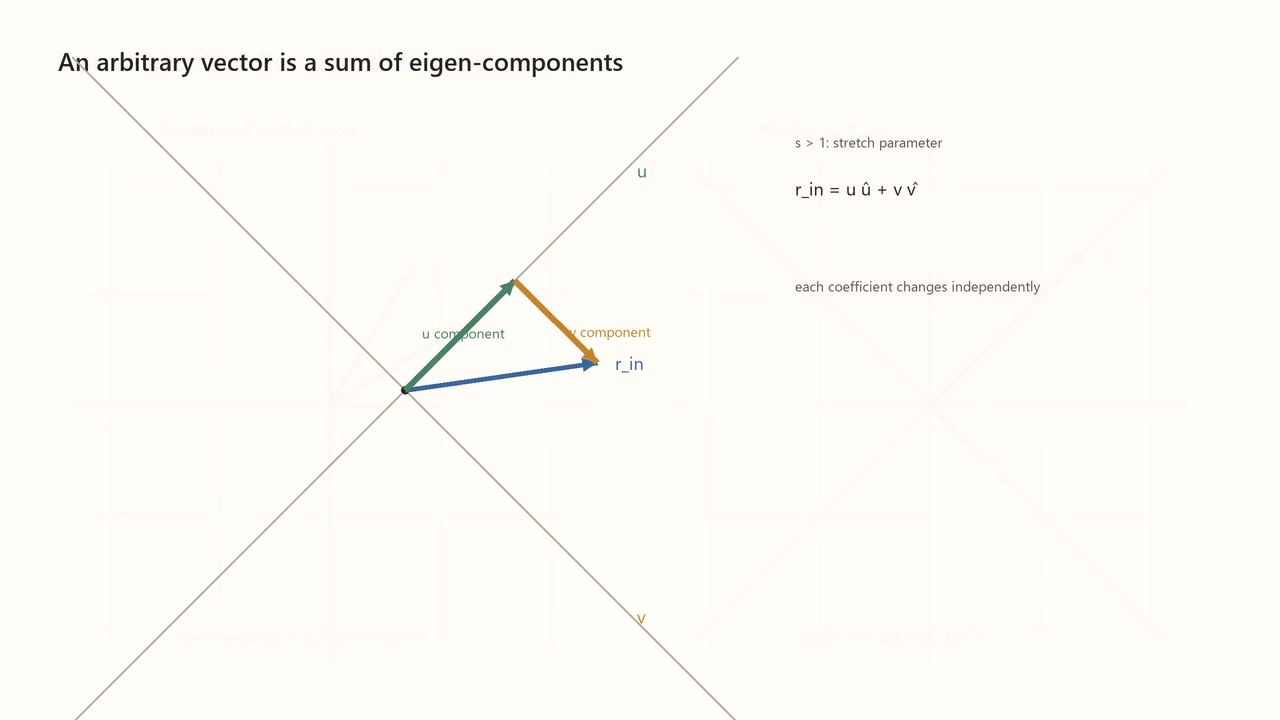

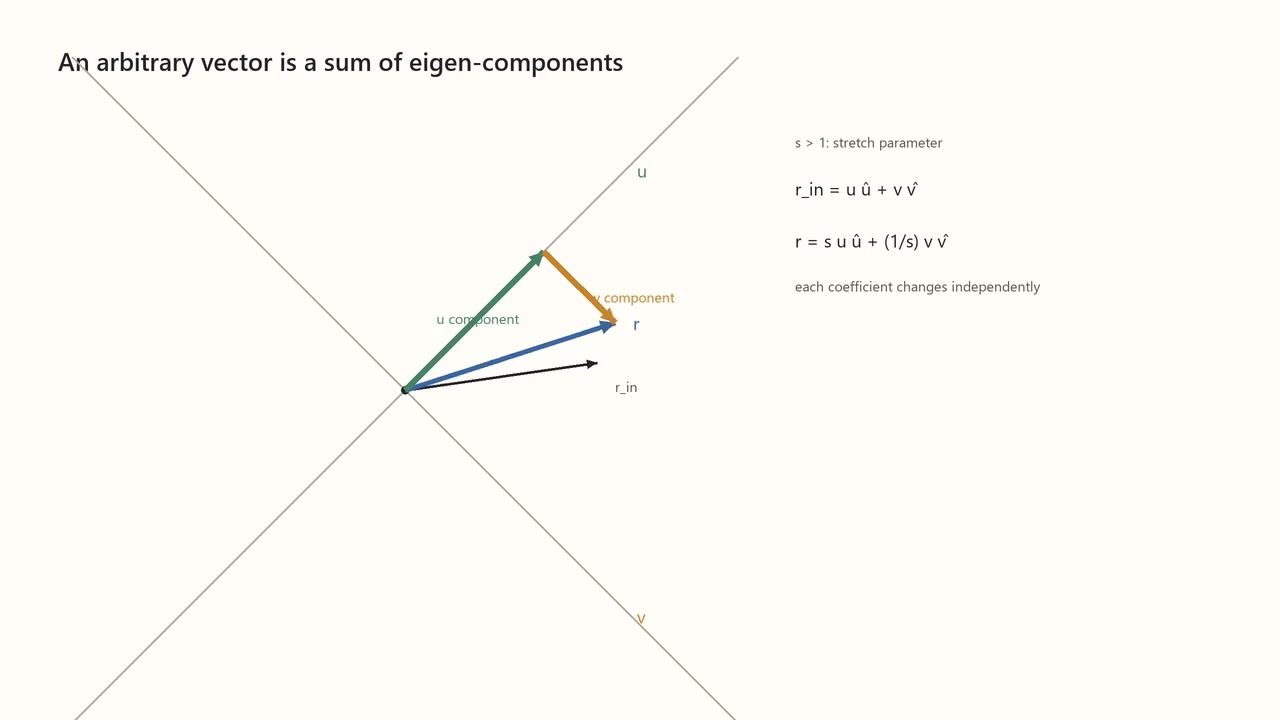

This is readily understood visually:
After the animation
Chapter lines 626–626
Now for a bunch of terminology. The "natural" basis vectors are the eigenvectors, the values a transformation scales these by are the eigenvalues and the basis they form is called the eigenbasis. When the "vectors" are functions, we call them eigenfunctions. As the transformation matrix is diagonal in the eigenbasis, the procedure for finding an eigenbasis is typically called diagonalization.
